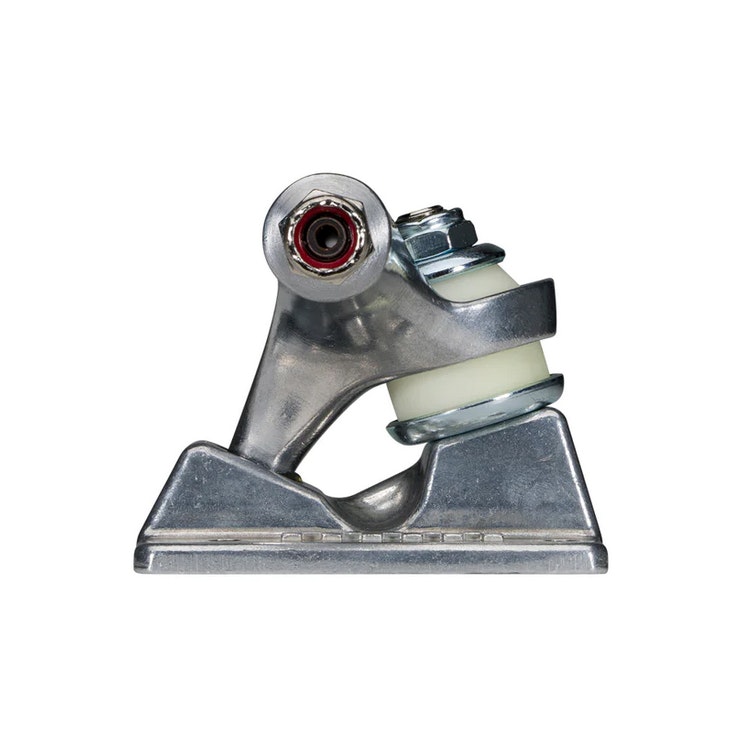

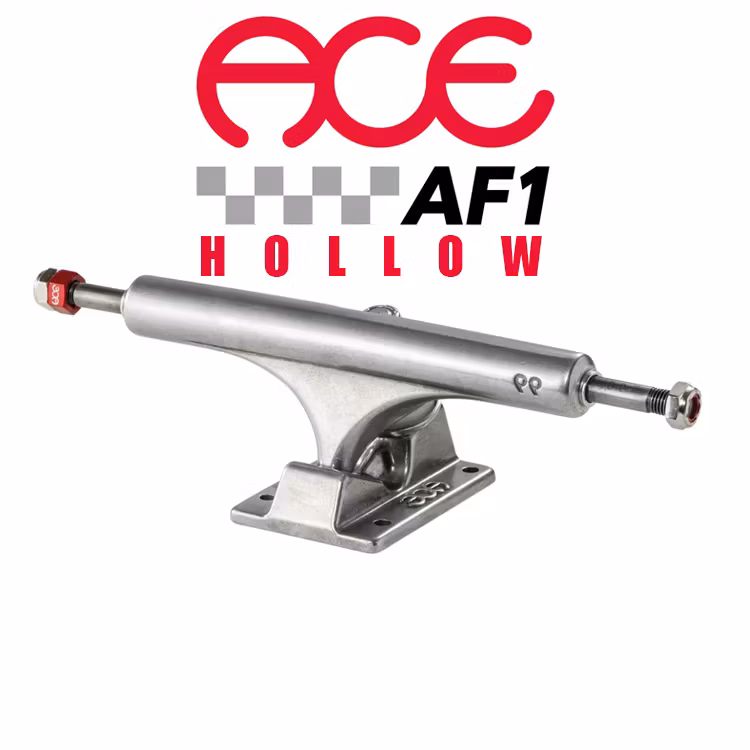

Ace AF1 Hollow 44 Skateboard Trucks

Ace AF1 Hollow 44 Skateboard Trucks

8,25'' Decks

The all-new ACE AF1 HOLLOWS features hollow  axle and kingpin, making for the lightest AF1 to date. The AF1 is  carefully manufactured using our proprietary casting process. Years in  development, the ACE AF1 has a 70% increase in the aluminum’s structural  integrity, making it the strongest cast truck on the market.

• 8.6% Lighter than standard AF1
• Truck height: 2.1” (53mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
• Each truck includes bonus gold Axle Re-Theader Die,  the gold and red axle re-threader dies are the same item, the gold  differentiates the truck in the showcase as a Hollow whereas red is for  standard AF1 with solid hanger and kingpin.

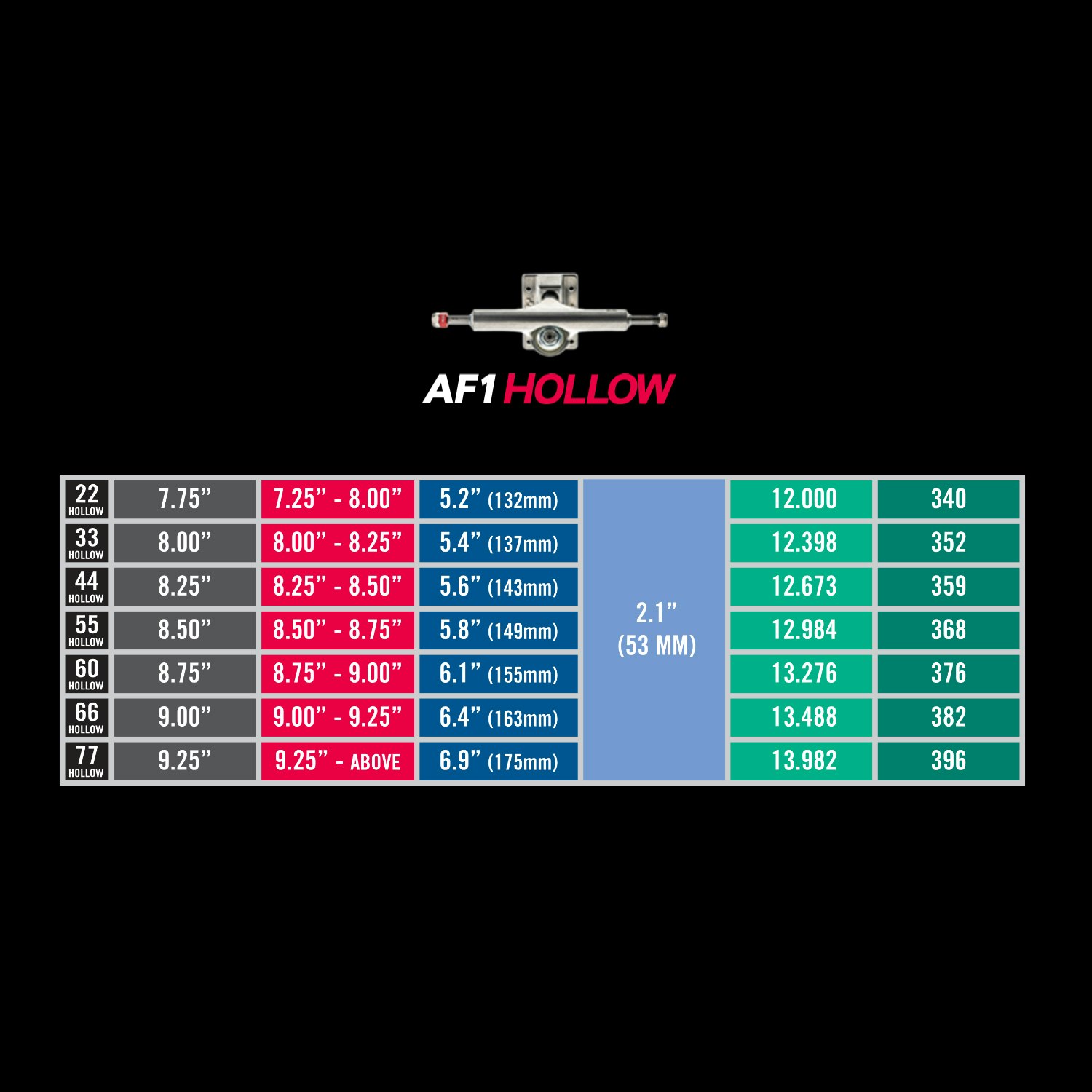

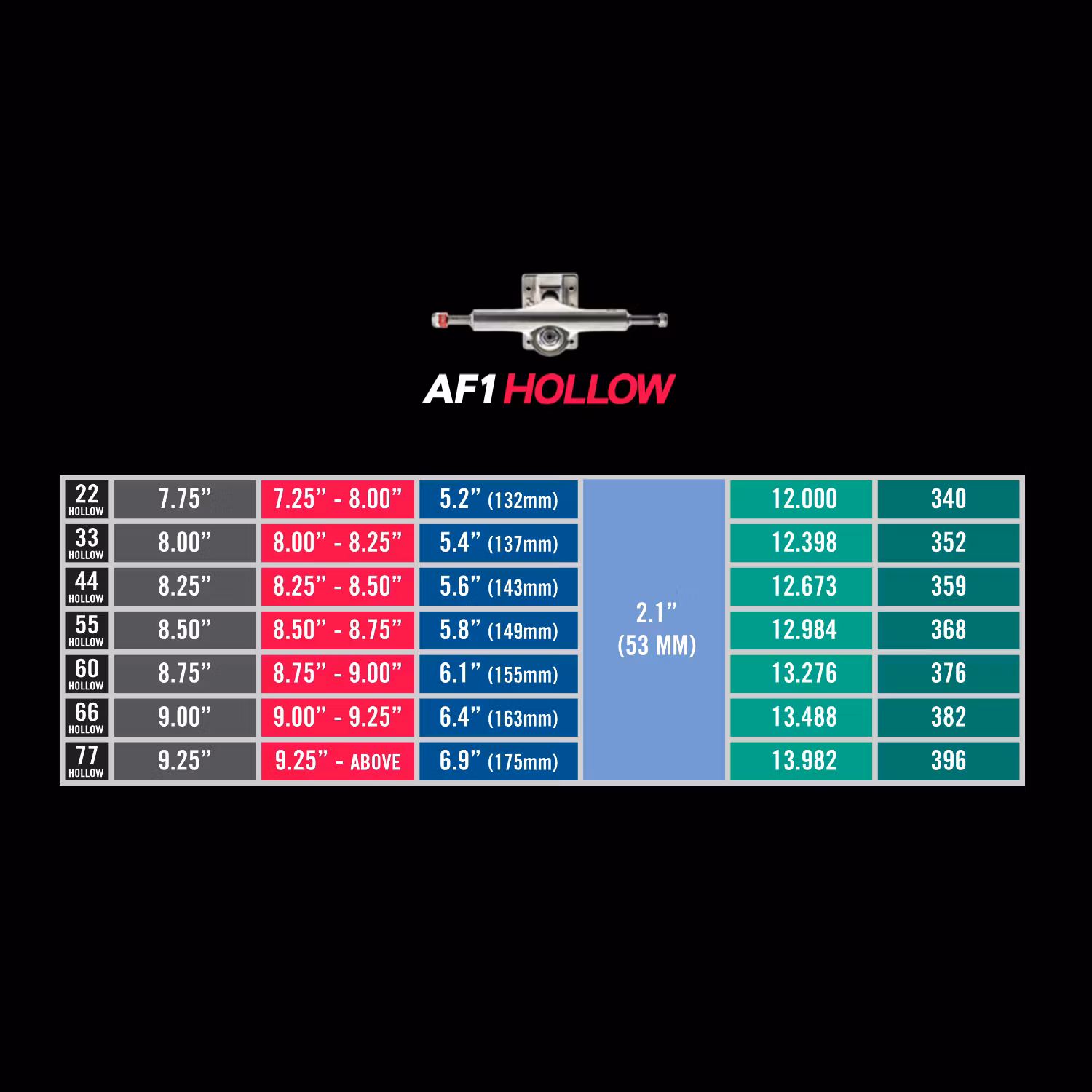

See full Ace Size Chart for more technical information on all models
