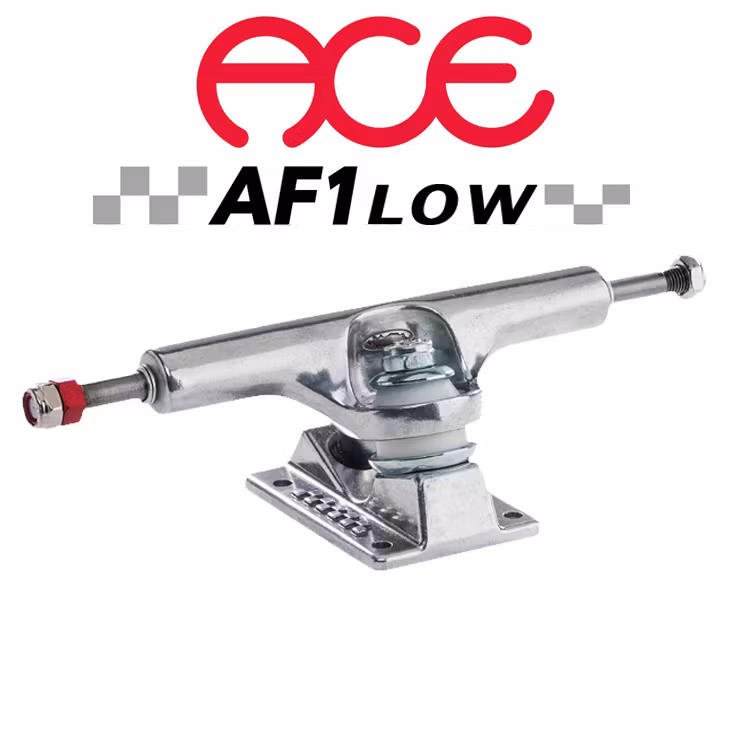

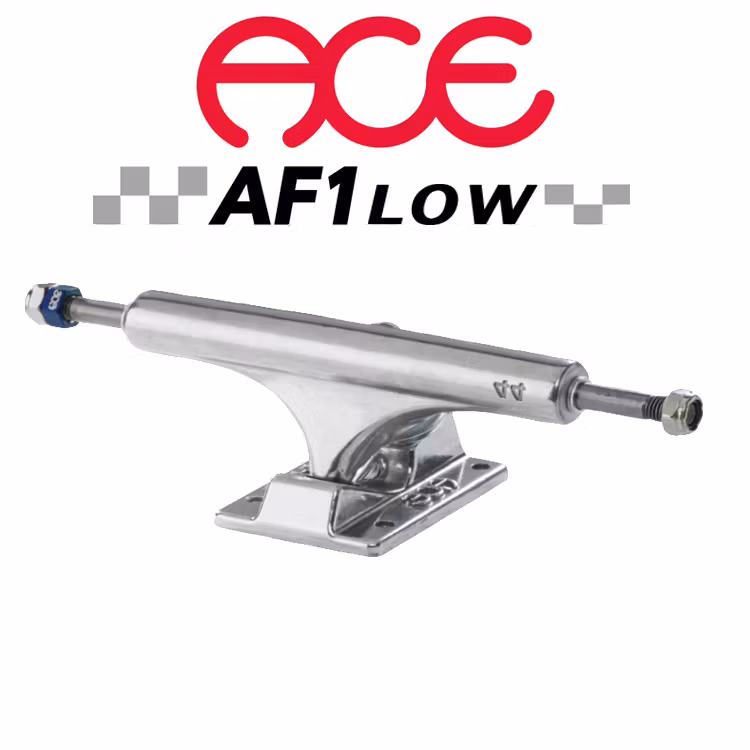

ACE AF1 33 Skateboard Trucks Low Profile
749 kr
ACE Trucks AF-1 33 Standard Low Profile – 49mm ride height. Fits 7,75'' - 8,125''
Includes two ACE Low Profile Skateboard Trucks

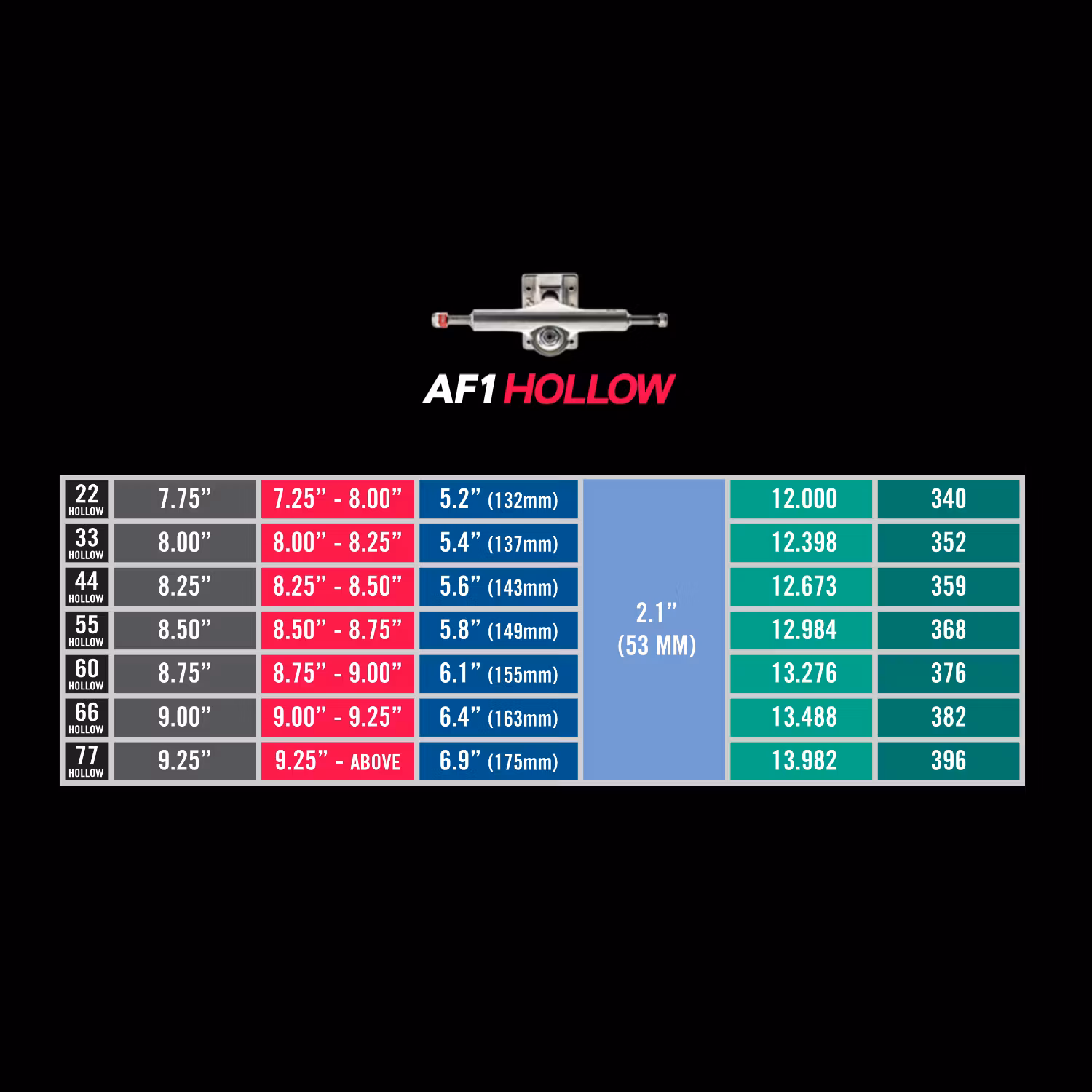

Sizing:
22 – 7.75” axle
33 – 8.0” axle
44 – 8.25” axle
55 – 8.5” axle
60 – 8.75” axle
66 – 9.0” axle
77 – 9.5” axle
80 – 10” axle
The ACE AF-1 Low Profile truck is designed to deliver low rideheight for maxim balance, controled manuals, quick pop and mxximum strength. Featuring a 49mm ride height. The ACE Low is the lowest profile truck offered by ACE compared to the standard 53mm ride height of standard AF-1 trucks.
Manufactured using ACE’s proprietary casting process, the AF-1 achieves a 70% increase in aluminum structural integrity, making it one of the strongest cast trucks available. Built from premium AA 356.2 alloy with True T6 heat treatment, both the hanger and baseplate are engineered to withstand heavy impact while maintaining consistent performance.
The refined suspension system provides a cleaner, more controlled turning response, supported by a balanced bushing setup that delivers stability and rebound. Hand-poured 96a urethane pivot bushings improve responsiveness, while the combination of 91a top and 86a bottom bushings ensures smooth, predictable turns.
Oversized SAE 4140 steel axles eliminate bearing wobble and improve roll consistency, while precision machine-faced hanger ends ensure accurate bearing contact. The included axle re-threading system helps restore damaged threads and extend the lifespan of the truck.
Key Features of ACE Trucks AF-1 Low:
Proprietary Casting Process – increases structural integrity by 70%
Low Profile 49mm ride height
Premium AA 356.2 Alloy – high-grade aluminum for durability
True T6 Heat Treatment – strengthens hanger and baseplate
Oversized SAE 4140 Steel Axles – eliminates bearing wobble
Axle Re-Threading System – restores damaged axle threads
Refined Suspension – smoother, more controlled turning response
Hand-poured 96a Pivot Bushings – improved response and durability
Top Bushing: 12mm / 91a – Bottom Bushing: 14mm / 86a
Machine-faced Hanger Ends – precise bearing alignment
