Inverted Kingpin Trucks

Inverted Kingpin Trucks

8/01, 2026 –

The inverted kingpin isn’t new, but in 2026 there’s more than one way to get extra grind clearance. Slappy, ACE and Independent take different approaches: Slappy lowers the kingpin head, ACE pairs a recessed kingpin with a hollow axle, and Independent offers both a lower truck and a baseplate swap for compatible Stage 11s.

Grind clearance and truck height are two different things. An inverted kingpin can sit lower relative to the hanger, giving it more room to clear a curb, ledge or coping. Truck height is measured to the axle and affects how much room your wheels have before they touch the deck. That’s why Slappy can call its kingpin Ultra Low while the 8.75″ truck still has a 54 mm axle height.

ModelListed axle heightWhat sets it apart
Slappy ST1 Hollow Lights Ultra Low, 8.75″54 mmHollow axle, hollow inverted kingpin and a shorter top bushing
ACE AF-1 Inverted Hollow, Size 6053 mmHollow axle and a recessed kingpin with a reinforced internal anchor
Independent Stage 11 MiD, Size 15952 mmLower ride height than a standard Stage 11, with an inverted kingpin

These are the listed heights for the specific models linked above.

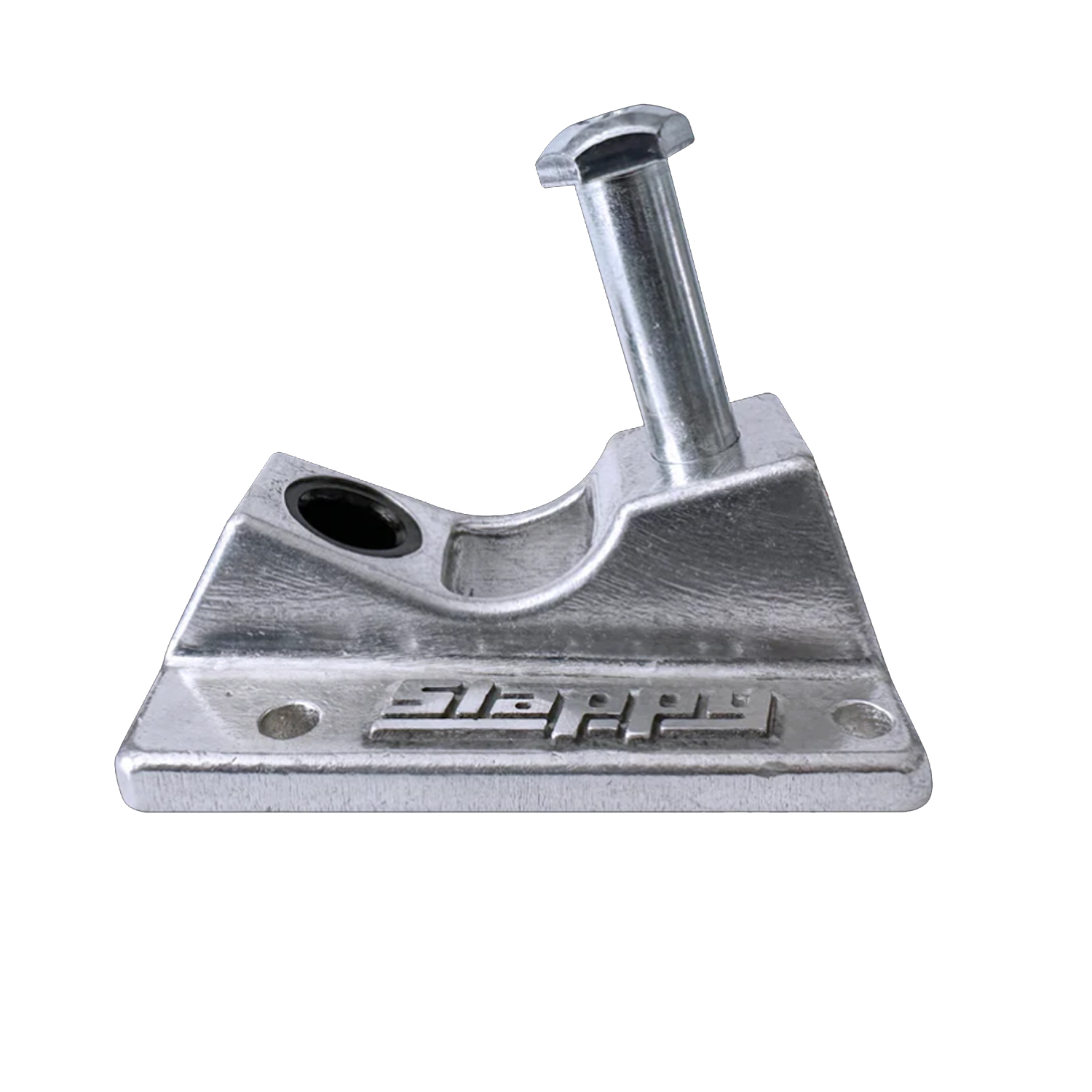

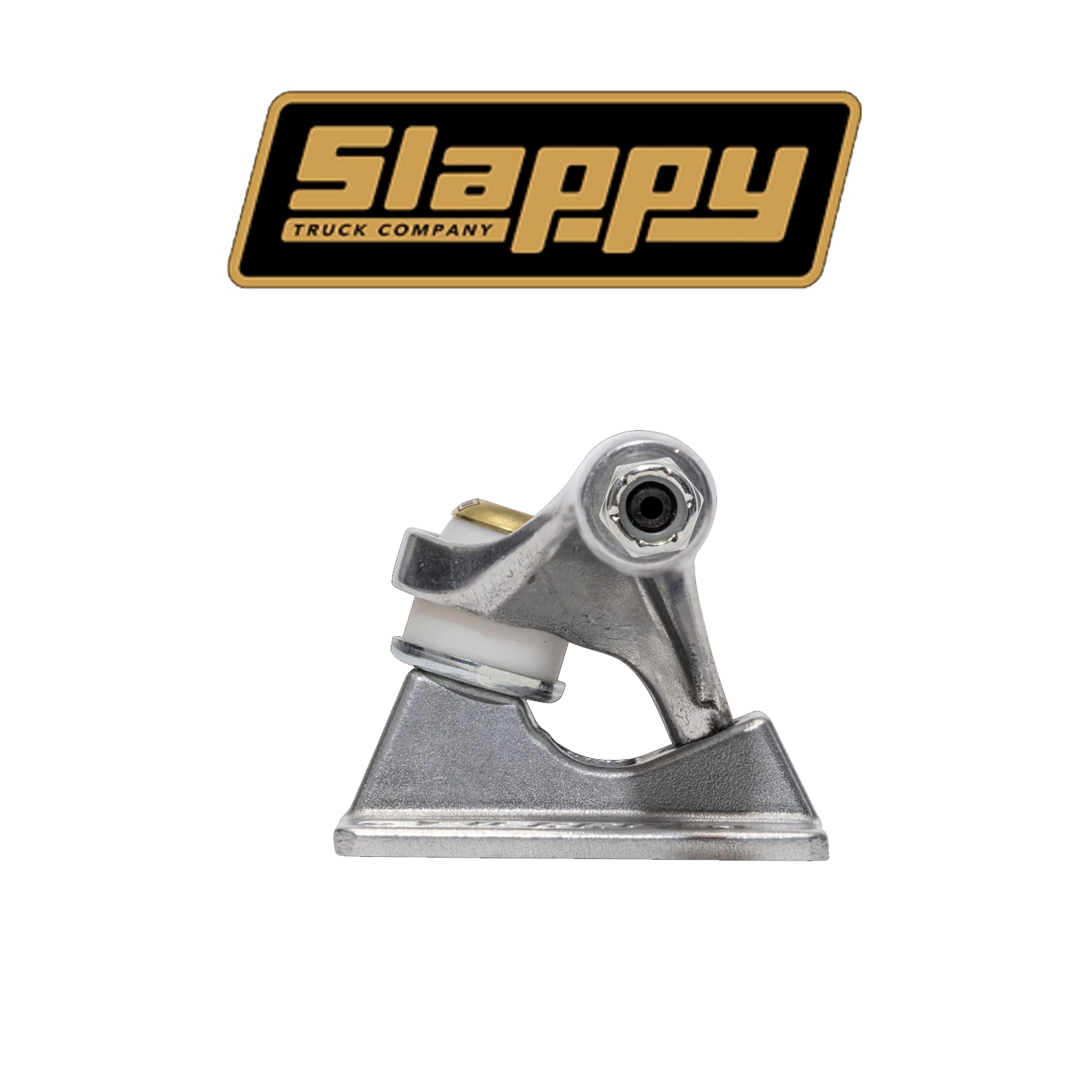

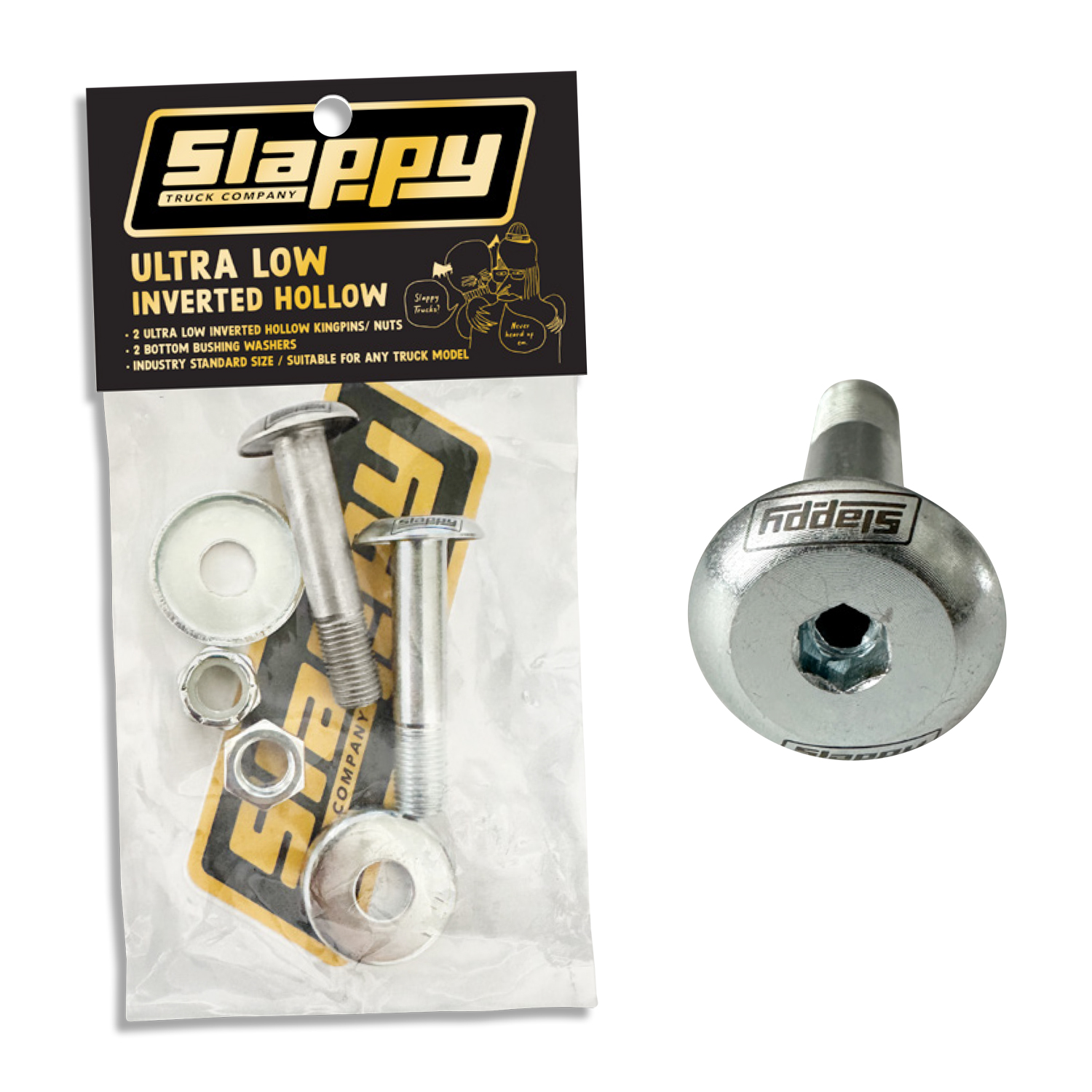

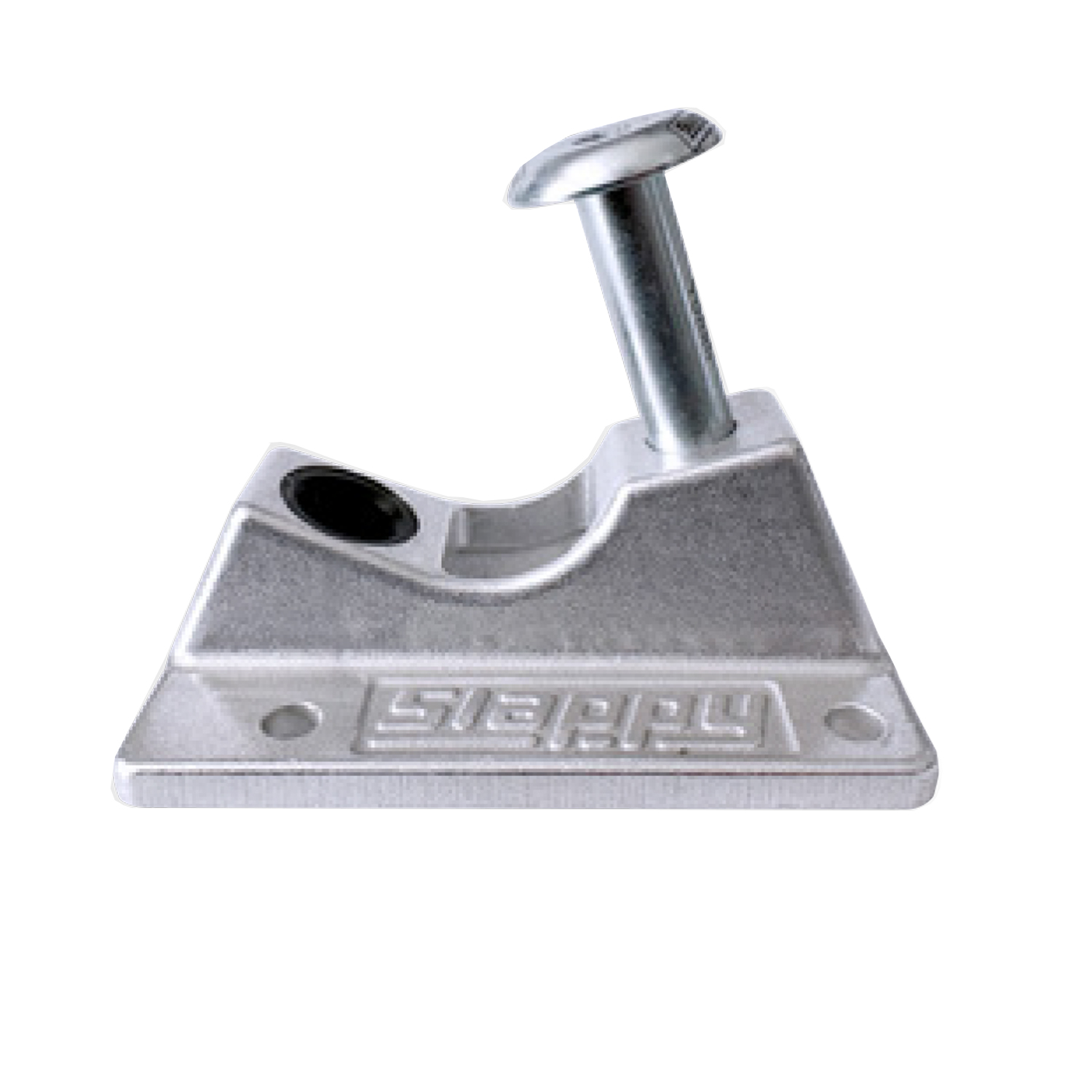

Slappy ST1 Ultra Low is the one I’d look at first if the kingpin catching on curbs is the problem you want to solve. The shorter top bushing lets Slappy bring the kingpin head down without making the whole truck a low.

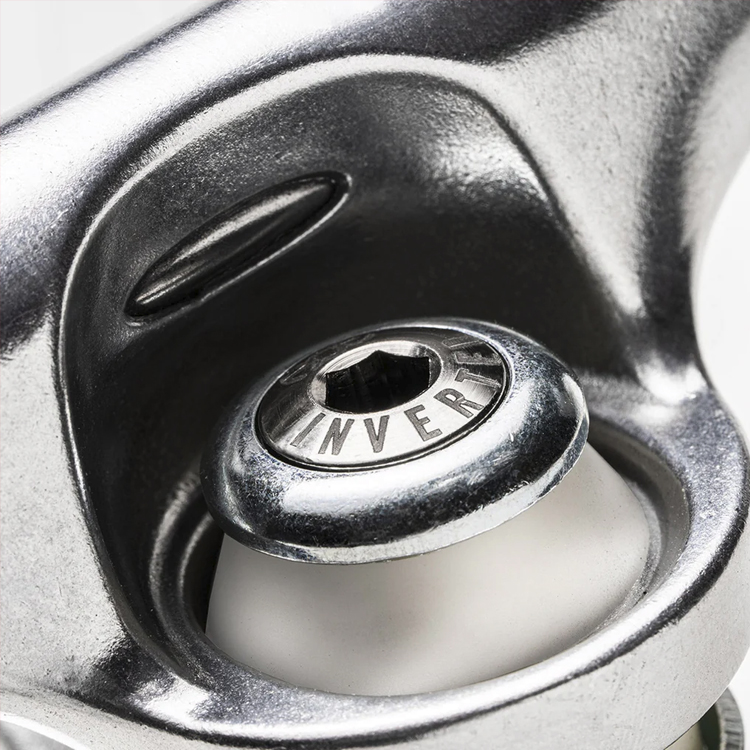

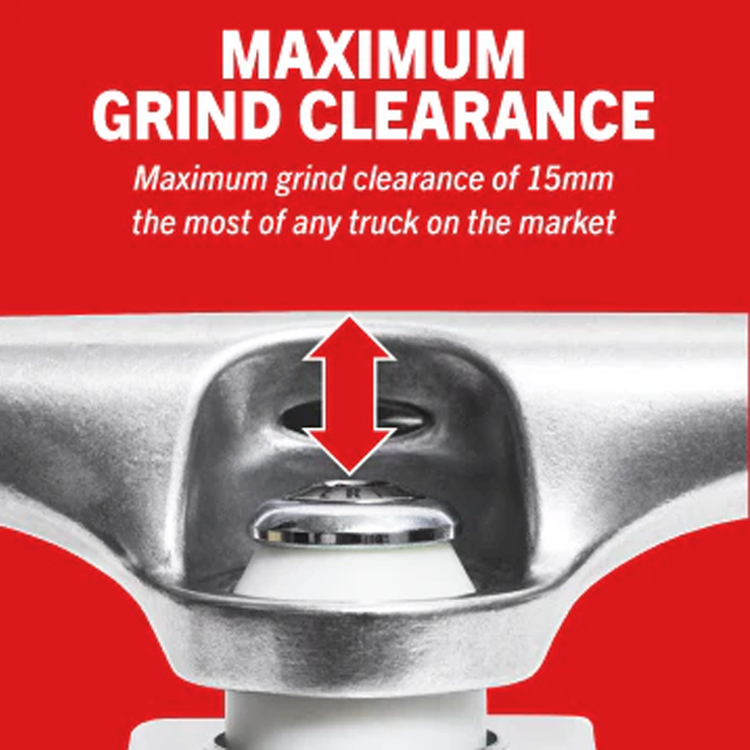

ACE AF-1 Inverted Hollow makes sense if you want the turning feel of an AF-1 with more room around the kingpin when you grind. If you ride an 8.25″ deck, the ACE AF-1 Inverted Hollow Size 44 has a matching 8.25″ axle.

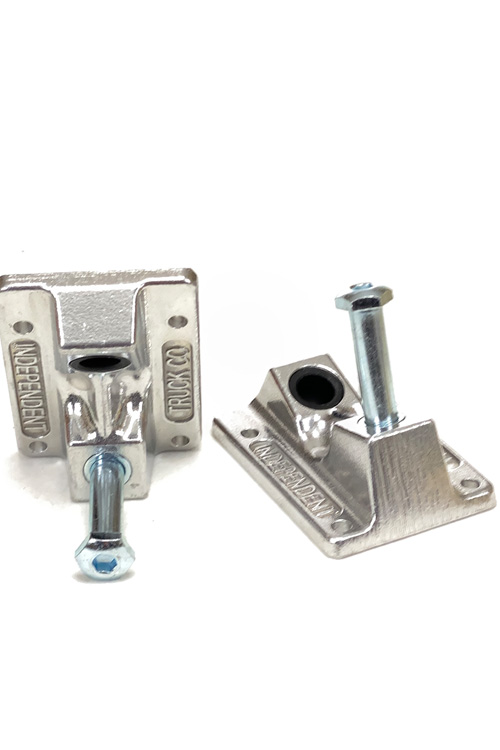

Independent gives you two ways in. The Stage 11 MiD is the option if you want a lower truck for ledges and technical street skating. If you already have a compatible Stage 11 setup and want to keep your hangers, the Independent Inverted Kingpin Baseplate Set lets you change the baseplates instead of replacing the whole set.

Browse inverted kingpin trucks at Nordic Skateboard Supply to compare models and find the axle width that fits your deck.
